Showing 421–432 of 3225 results
Dayton Hardened Steel BSP Pressure Plunger Pump 5 HP, 4WXW4
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXW4 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXW4 |
| Maximum Flow Rate |
3 gpm |
| Max. Discharge Pressure |
2,500 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
NEMA 56-C |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,500 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
1,750 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.7 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Hollow |
| Connection Size |
9.53 mm |
| Drive Type |
Direct-Mount |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
5 HP |
| Overall Height |
5.5 Inch |
| Rod Material |
Aluminum |
| Series |
RCA |
| Overall Width |
7.2 inch |
| Shaft Outer Diameter |
5/8 inch |
| Shaft |
5/8 inch Hollow |
| Overall Length cm |
19.56 cm |
| Overall Height mm |
139.7 mm |
| Overall Width mm |
182.88 mm |
| Connection Size Inch |
3/8 inch |

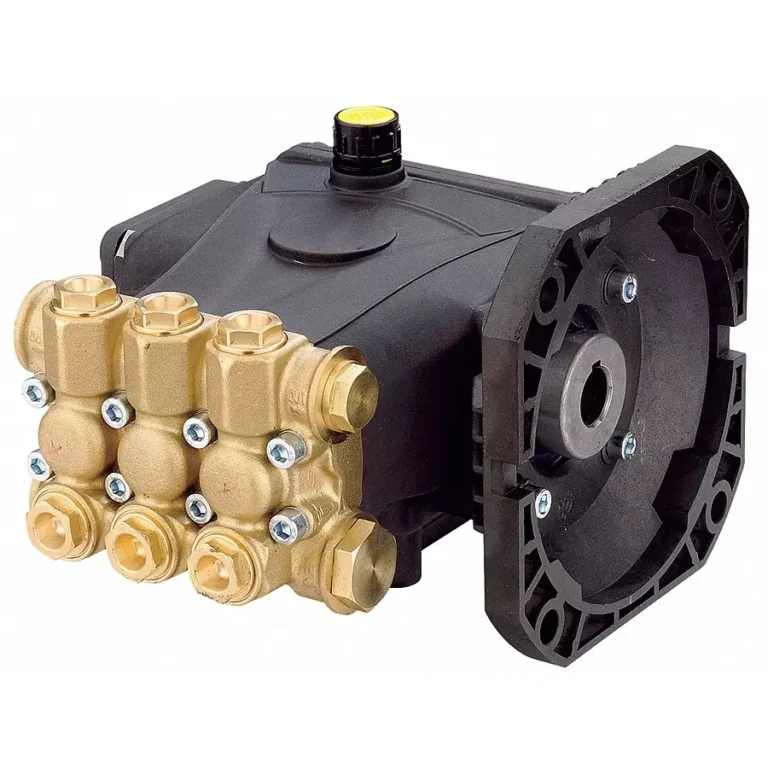

Dayton Hardened Steel BSP Pressure Plunger Pump 5 HP, 4WXW5
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXW5 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXW5 |
| Maximum Flow Rate |
3 gpm |
| Max. Discharge Pressure |
2,500 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
NEMA 56-C |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,500 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
3,450 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.7 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Hollow |
| Connection Size |
9.53 mm |
| Drive Type |
Direct-Mount |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
5 HP |
| Overall Height |
5.5 Inch |
| Rod Material |
Aluminum |
| Series |
RCV |
| Overall Width |
7.2 inch |
| Shaft Outer Diameter |
5/8 inch |
| Shaft |
5/8 inch Hollow |
| Overall Length cm |
19.56 cm |
| Overall Height mm |
139.7 mm |
| Overall Width mm |
182.88 mm |
| Connection Size Inch |
3/8 inch |

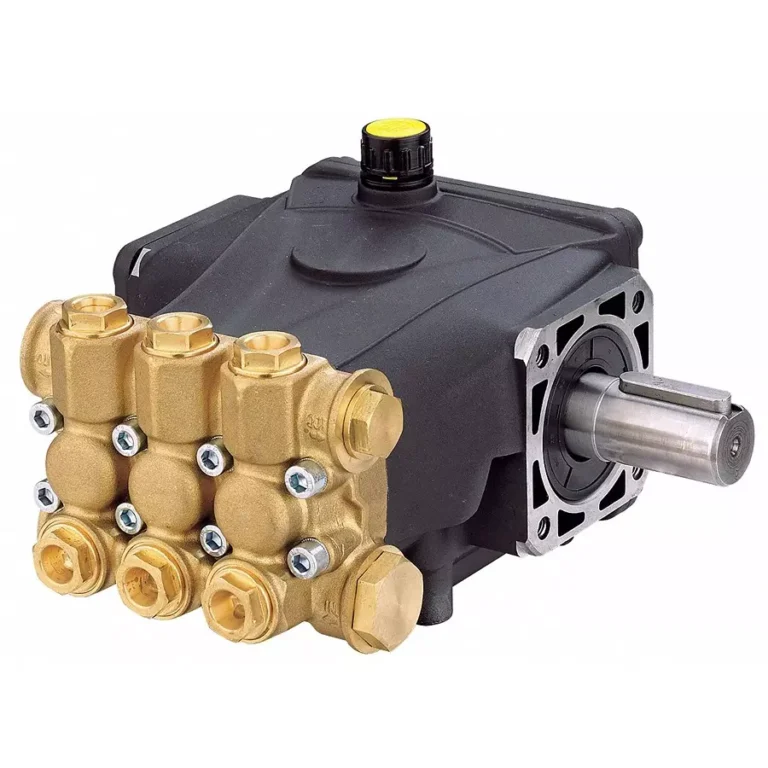

Dayton Hardened Steel BSP Pressure Plunger Pump 5 HP, 4WXW6
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXW6 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXW6 |
| Maximum Flow Rate |
2.5 gpm |
| Max. Discharge Pressure |
2,500 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
NEMA 182-184 |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,500 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
1,750 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.2 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Solid |
| Connection Size |
9.53 mm |
| Drive Type |
Belt-Drive |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
5 HP |
| Overall Height |
4.9 Inch |
| Rod Material |
Aluminum |
| Series |
RCA |
| Overall Width |
7.9 inch |
| Shaft Outer Diameter |
24 mm |
| Shaft |
24 mm Solid |
| Overall Length cm |
18.29 cm |
| Overall Height mm |
124.46 mm |
| Overall Width mm |
200.66 mm |
| Connection Size Inch |
3/8 inch |

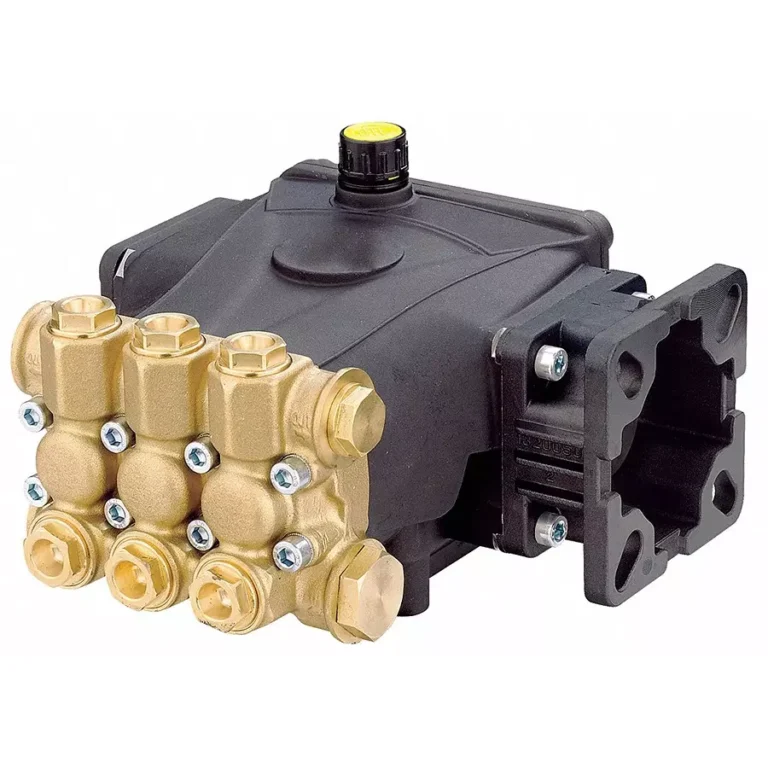

Dayton Hardened Steel BSP Pressure Plunger Pump 6 HP, 4WXW1
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXW1 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXW1 |
| Maximum Flow Rate |
3 gpm |
| Max. Discharge Pressure |
2,500 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
Horizontal Gas Engine |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,500 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
3,400 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.2 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Hollow |
| Connection Size |
9.53 mm |
| Drive Type |
Direct-Mount |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
6 HP |
| Overall Height |
4.9 Inch |
| Rod Material |
Aluminum |
| Series |
RCV |
| Overall Width |
7.5 inch |
| Shaft Outer Diameter |
3/4 inch |
| Shaft |
3/4 inch Hollow |
| Overall Length cm |
18.29 cm |
| Overall Height mm |
124.46 mm |
| Overall Width mm |
190.5 mm |
| Connection Size Inch |
3/8 inch |
Dayton Hardened Steel BSP Pressure Plunger Pump 7-1/2 HP, 4WXV8
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXV8 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXV8 |
| Maximum Flow Rate |
3.5 gpm |
| Max. Discharge Pressure |
2,500 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
NEMA 182-184 |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,500 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
1,750 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.2 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Solid |
| Connection Size |
9.53 mm |
| Drive Type |
Belt-Drive |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
7-1/2 HP |
| Overall Height |
4.9 Inch |
| Rod Material |
Aluminum |
| Series |
RCA |
| Overall Width |
7.9 inch |
| Shaft Outer Diameter |
24 mm |
| Shaft |
24 mm Solid |
| Overall Length cm |
18.29 cm |
| Overall Height mm |
124.46 mm |
| Overall Width mm |
200.66 mm |
| Connection Size Inch |
3/8 inch |

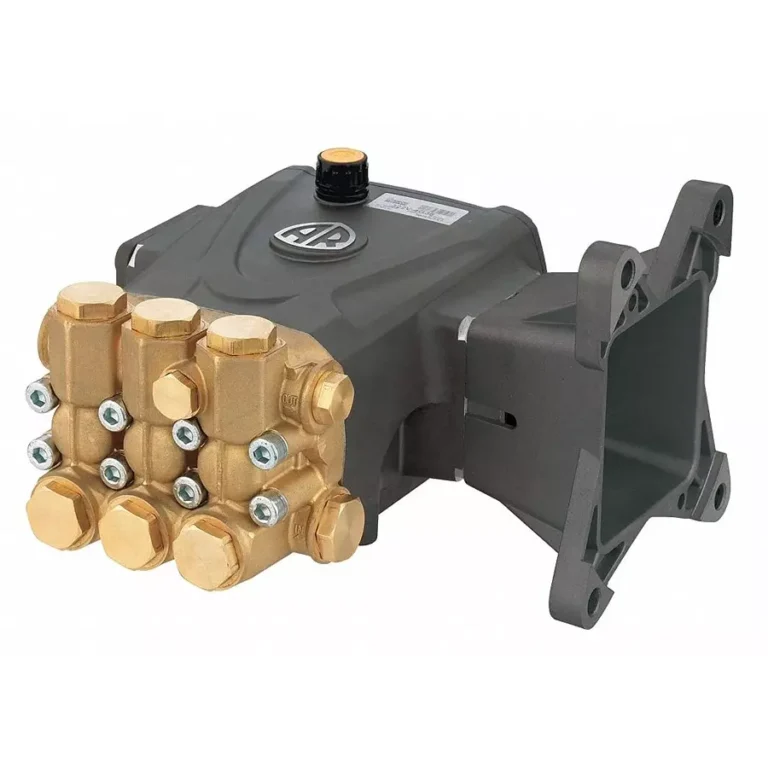

Dayton Hardened Steel BSP Pressure Plunger Pump 9 HP, 5ZNT6
In stock
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
5ZNT6 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
5ZNT6 |
| Maximum Flow Rate |
3 gpm |
| Max. Discharge Pressure |
3,600 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
Horizontal Gas Engine |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
3,600 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
3,400 RPM |
| Seal Material |
Buna-N |
| Overall Length |
8.8 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Hollow |
| Connection Size |
9.53 mm |
| Drive Type |
Direct-Mount |
| Seal Type |
Cotton Duct |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
9 HP |
| Overall Height |
6.5 Inch |
| Rod Material |
Aluminum |
| Series |
RRV |
| Overall Width |
9.5 inch |
| Shaft Outer Diameter |
1 inch |
| Shaft |
1 inch Hollow |
| Overall Length cm |
22.35 cm |
| Overall Height mm |
165.1 mm |
| Overall Width mm |
241.3 mm |
| Connection Size Inch |
3/8 inch |

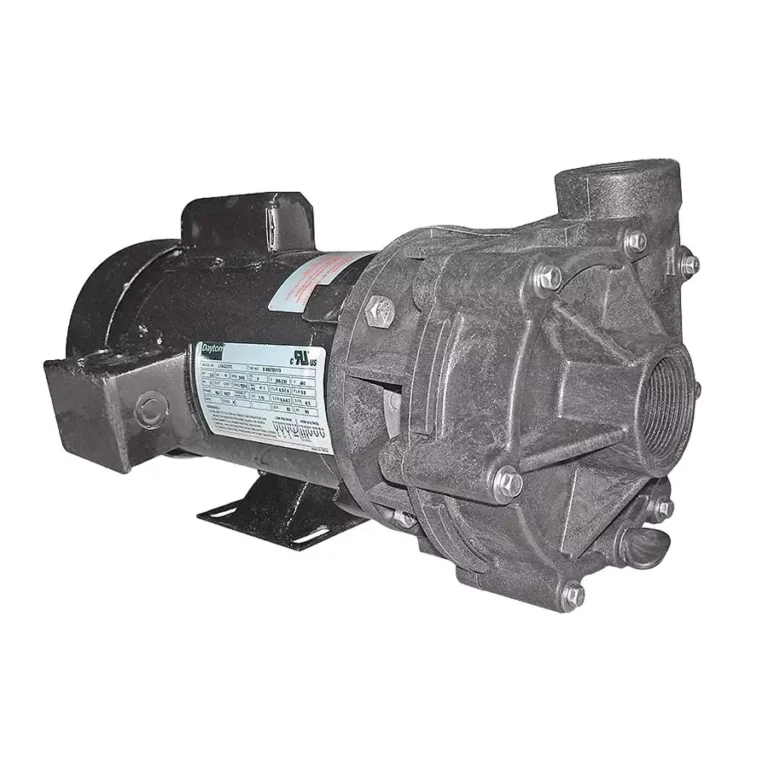

Dayton Single Phase Noryl Centrifugal Pump, 2YEV7
In stock
| Type of Product |
Centrifugal Pump |
|---|---|
| Is Consumable |
N |
| Head Range |
41 ft |
| Power |
1.5 HP |
| Phase |
Single Phase |
| Country of Origin |
India |
| Volute |
Noryl |
| Current |
10.7 or 5.2 to 5.3 A |
| Frequency |
60 Hz |
| Part No |
2YEV7 |
| Standard |
cULus Listed |
| Horse Power |
3/4 hp |
| Item Code |
2YEV7 |
| Impeller Material |
Noryl |
| Shaft Material |
Stainless Steel |
| Pipe Size |
1-1/2 inch |
| Flow Rate |
2-29 gpm |
| Head Range m |
12.50 m |
| Seal Material |
Carbon Ceramic Noryl Viton |
| Motor Type |
Capacitor Start inchduction |
| For Use With Potable Systems |
No |
| Best Efficiency Head |
41 ft |
| Duty Cycle |
Continuous |
| Nameplate Voltage |
115/208-230V AC |
| Wetted Material |
Carbon Ceramic Noryl Viton |
| Overall Length |
15.9 inch |
| Solid Diameter Maximum |
0.25 inch |
| Overall Height |
7.5 Inch |
| Best Efficiency Flow |
24 gpm |
| Overall Width |
7.6 inch |
| Media Temperature |
180° F |
| Specific Gravity |
1 |
| Discharge Port |
1-1/2 inch NPT |
| Case Pressure |
100 psi |
| Impeller Design |
Closed |
| Housing Material |
Noryl |
| Intake Pipe Type |
NPT |
| Suction Ports |
1-1/2 inch NPT |
| Bearing Type |
Ball |
| Seal Type |
Mechanical |
| Viscosity |
100 SUS |
| Intake Pipe Size |
1-1/2 inch |
| Shaft Outer Diameter |
5/8 inch |
| UNSPSC Code |
40151503 |
| Motor Enclosure |
Totally Enclosed Fan Cooled |
| Manufacturer Part Number |
2YEV7 |
| Priming |
Manual |
| Pipe Type |
NPT |
| Motor Frame |
56J NEMA |
| Factor |
1.15 |
| Max Temperature Range |
140° |
| Overall Length cm |
40.39 cm |
| Overall Height mm |
190.5 mm |
| Overall Width mm |
193.04 mm |
Dayton Single Phase Noryl Centrifugal Pump, 2YEV9
In stock
| Type of Product |
Centrifugal Pump |
|---|---|
| Is Consumable |
N |
| Head Range |
50 ft |
| Power |
1.5 HP |
| Phase |
Single Phase |
| Country of Origin |
India |
| Volute |
Noryl |
| Current |
12.2 or 6.3 to 6.1 A |
| Frequency |
60 Hz |
| Part No |
2YEV9 |
| Standard |
cULus Listed |
| Horse Power |
1 hp |
| Item Code |
2YEV9 |
| Impeller Material |
Noryl |
| Shaft Material |
Stainless Steel |
| Pipe Size |
1-1/2 inch |
| Flow Rate |
14-48 gpm |
| Head Range m |
15.24 m |
| Seal Material |
Carbon Ceramic Noryl Viton |
| Motor Type |
Capacitor Start inchduction |
| For Use With Potable Systems |
No |
| Best Efficiency Head |
50 ft |
| Duty Cycle |
Continuous |
| Nameplate Voltage |
115/208-230V AC |
| Wetted Material |
Carbon Ceramic Noryl Viton |
| Overall Length |
15.9 inch |
| Solid Diameter Maximum |
0.25 inch |
| Overall Height |
7.5 Inch |
| Best Efficiency Flow |
38 gpm |
| Overall Width |
7.6 inch |
| Media Temperature |
180° F |
| Specific Gravity |
1 |
| Discharge Port |
1-1/2 inch NPT |
| Case Pressure |
100 psi |
| Impeller Design |
Closed |
| Housing Material |
Noryl |
| Intake Pipe Type |
NPT |
| Suction Ports |
1-1/2 inch NPT |
| Bearing Type |
Ball |
| Seal Type |
Mechanical |
| Viscosity |
100 SUS |
| Intake Pipe Size |
1-1/2 inch |
| Shaft Outer Diameter |
5/8 inch |
| UNSPSC Code |
40151503 |
| Motor Enclosure |
Totally Enclosed Fan Cooled |
| Manufacturer Part Number |
2YEV9 |
| Priming |
Manual |
| Pipe Type |
NPT |
| Motor Frame |
56J NEMA |
| Factor |
1.15 |
| Max Temperature Range |
140° |
| Overall Length cm |
40.39 cm |
| Overall Height mm |
190.5 mm |
| Overall Width mm |
193.04 mm |
Dayton Single Phase Pump Control Panel 32 Amps, 2PZF8
In stock
| Phase |
Single Phase |
|---|---|
| Type of Product |
Pump Control Panel |
| Is Consumable |
N |
| Type |
Simplex Control Panel |
| Country of Origin |
USA |
| Width |
6 inch |
| Part No |
2PZF8 |
| Height |
8 inch |
| Item Code |
2PZF8 |
| Rated Voltage |
240 V AC |
| Enclosure Type |
NEMA 4X |
| UNSPSC Code |
39121510 |
| Pump Type |
Sump |
| Number of Pumps |
1 |
| Amps |
32 A |
| Switch Actuation |
No Switch inchcluded |
| Includes |
10A Control Circuit Breaker External Hand Operation Switch SqD Components |
| Depth |
4 inch |
| Location |
Indoor/Outdoor |
| Height cm |
20.32 cm |
| Height mm |
203.2 mm |
| Width cm |
15.24 cm |
| Width mm |
152.4 mm |
| Depth mm |
101.6 mm |

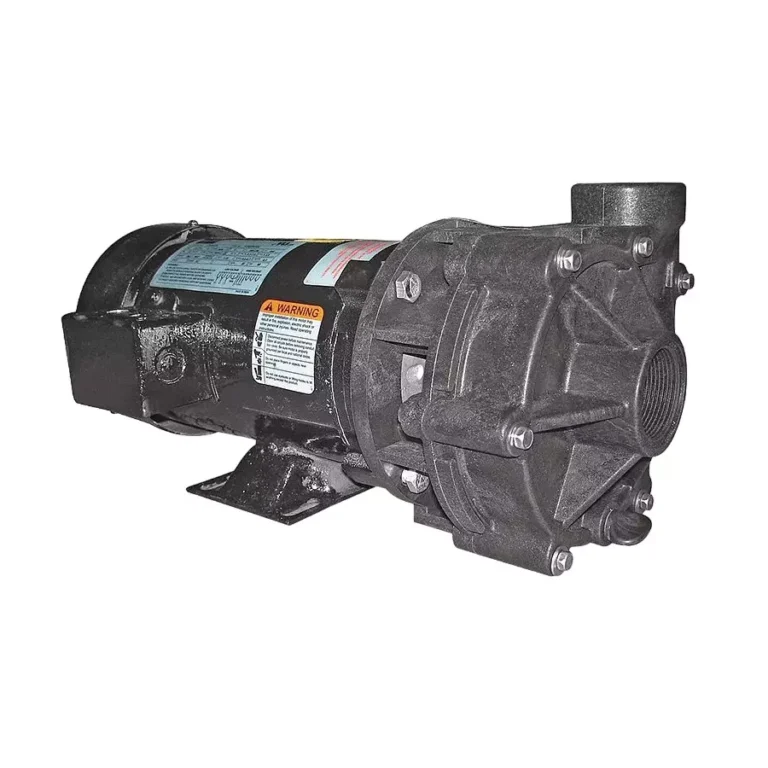

Dayton Three Phase Noryl Centrifugal Pump, 2YEW5
In stock
| Type of Product |
Centrifugal Pump |
|---|---|
| Is Consumable |
N |
| Head Range |
60 ft |
| Power |
1.5 HP |
| Phase |
Three Phase |
| Country of Origin |
India |
| Volute |
Noryl |
| Current |
5.6 or 2.8 A |
| Frequency |
60 Hz |
| Part No |
2YEW5 |
| Standard |
cULus Listed |
| Horse Power |
2 hp |
| Item Code |
2YEW5 |
| Impeller Material |
Noryl |
| Shaft Material |
Stainless Steel |
| Pipe Size |
1-1/2 inch |
| Flow Rate |
31-83 gpm |
| Head Range m |
18.29 m |
| Seal Material |
Carbon Ceramic Noryl Viton |
| For Use With Potable Systems |
No |
| Best Efficiency Head |
60 ft |
| Duty Cycle |
Continuous |
| Nameplate Voltage |
230/460V AC |
| Wetted Material |
Carbon Ceramic Noryl Viton |
| Overall Length |
15.9 inch |
| Solid Diameter Maximum |
0.25 inch |
| Overall Height |
7.5 Inch |
| Best Efficiency Flow |
58 gpm |
| Overall Width |
10.3 inch |
| Media Temperature |
180° F |
| Specific Gravity |
1 |
| Discharge Port |
1-1/2 inch NPT |
| Case Pressure |
100 psi |
| Impeller Design |
Closed |
| Housing Material |
Noryl |
| Intake Pipe Type |
NPT |
| Suction Ports |
1-1/2 inch NPT |
| Bearing Type |
Ball |
| Seal Type |
Mechanical |
| Viscosity |
100 SUS |
| Intake Pipe Size |
1-1/2 inch |
| Shaft Outer Diameter |
5/8 inch |
| UNSPSC Code |
40151503 |
| Motor Enclosure |
Totally Enclosed Fan Cooled |
| Manufacturer Part Number |
2YEW5 |
| Priming |
Manual |
| Pipe Type |
NPT |
| Motor Frame |
56J NEMA |
| Factor |
1.15 |
| Max Temperature Range |
140° |
| Overall Length cm |
40.39 cm |
| Overall Height mm |
190.5 mm |
| Overall Width mm |
261.62 mm |
Dayton Three Phase Pump Control Panel 23 to 32 Amps, 2PZF9
In stock
| Phase |
Three Phase |
|---|---|
| Type of Product |
Pump Control Panel |
| Is Consumable |
N |
| Type |
Simplex Control Panel |
| Country of Origin |
USA |
| Width |
6 inch |
| Part No |
2PZF9 |
| Height |
8 inch |
| Item Code |
2PZF9 |
| Rated Voltage |
208/240/480 V AC |
| Enclosure Type |
NEMA 4X |
| UNSPSC Code |
39121510 |
| Pump Type |
Sump |
| Number of Pumps |
1 |
| Amps |
23 to 32 A |
| Switch Actuation |
No Switch inchcluded |
| Includes |
10A Control Circuit Breaker External Hand Operation Switch SqD Components |
| Depth |
4 inch |
| Location |
Indoor/Outdoor |
| Height cm |
20.32 cm |
| Height mm |
203.2 mm |
| Width cm |
15.24 cm |
| Width mm |
152.4 mm |
| Depth mm |
101.6 mm |
