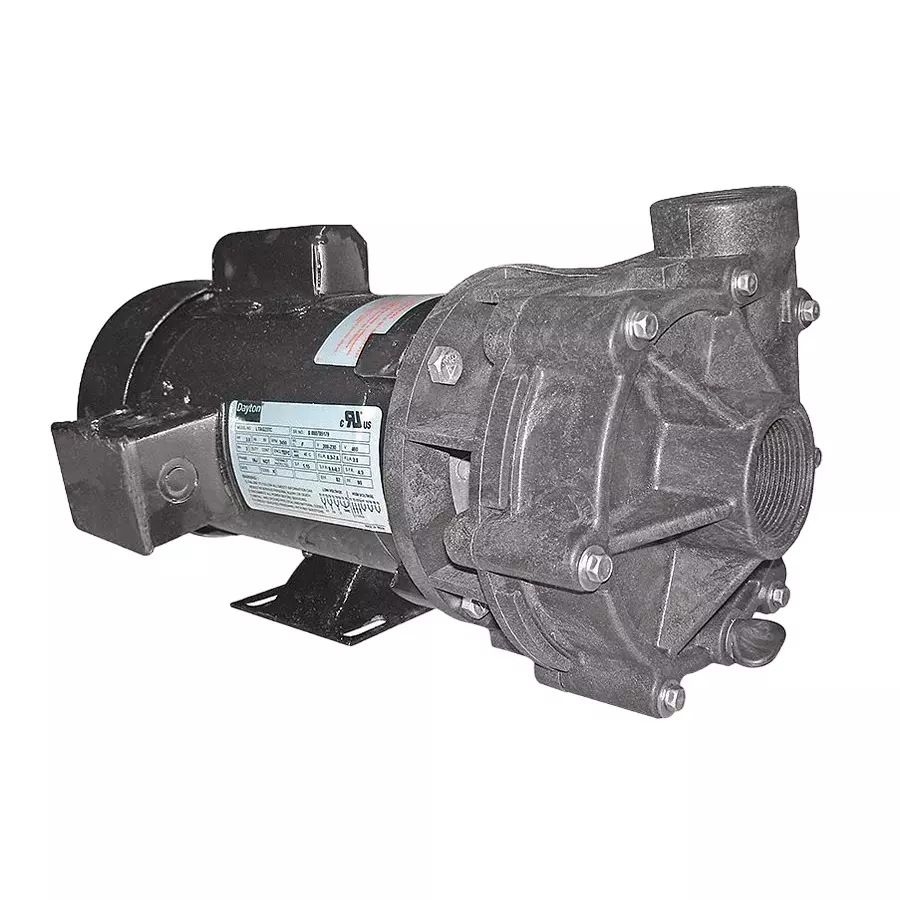

Dayton Single Phase Noryl Centrifugal Pump, 2YEV9
Buy Dayton Single Phase Noryl Centrifugal Pump, 2YEV9 Online in India on tecmet.in. All Genuine Products ✔ Lowest Prices ✔ Free Shipping ✔ EMI & COD
₹93,219.00
18
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Type of Product |
Centrifugal Pump |
|---|---|
| Is Consumable |
N |
| Head Range |
50 ft |
| Power |
1.5 HP |
| Phase |
Single Phase |
| Country of Origin |
India |
| Volute |
Noryl |
| Current |
12.2 or 6.3 to 6.1 A |
| Frequency |
60 Hz |
| Part No |
2YEV9 |
| Standard |
cULus Listed |
| Horse Power |
1 hp |
| Item Code |
2YEV9 |
| Impeller Material |
Noryl |
| Shaft Material |
Stainless Steel |
| Pipe Size |
1-1/2 inch |
| Flow Rate |
14-48 gpm |
| Head Range m |
15.24 m |
| Seal Material |
Carbon Ceramic Noryl Viton |
| Motor Type |
Capacitor Start inchduction |
| For Use With Potable Systems |
No |
| Best Efficiency Head |
50 ft |
| Duty Cycle |
Continuous |
| Nameplate Voltage |
115/208-230V AC |
| Wetted Material |
Carbon Ceramic Noryl Viton |
| Overall Length |
15.9 inch |
| Solid Diameter Maximum |
0.25 inch |
| Overall Height |
7.5 Inch |
| Best Efficiency Flow |
38 gpm |
| Overall Width |
7.6 inch |
| Media Temperature |
180° F |
| Specific Gravity |
1 |
| Discharge Port |
1-1/2 inch NPT |
| Case Pressure |
100 psi |
| Impeller Design |
Closed |
| Housing Material |
Noryl |
| Intake Pipe Type |
NPT |
| Suction Ports |
1-1/2 inch NPT |
| Bearing Type |
Ball |
| Seal Type |
Mechanical |
| Viscosity |
100 SUS |
| Intake Pipe Size |
1-1/2 inch |
| Shaft Outer Diameter |
5/8 inch |
| UNSPSC Code |
40151503 |
| Motor Enclosure |
Totally Enclosed Fan Cooled |
| Manufacturer Part Number |
2YEV9 |
| Priming |
Manual |
| Pipe Type |
NPT |
| Motor Frame |
56J NEMA |
| Factor |
1.15 |
| Max Temperature Range |
140° |
| Overall Length cm |
40.39 cm |
| Overall Height mm |
190.5 mm |
| Overall Width mm |
193.04 mm |
