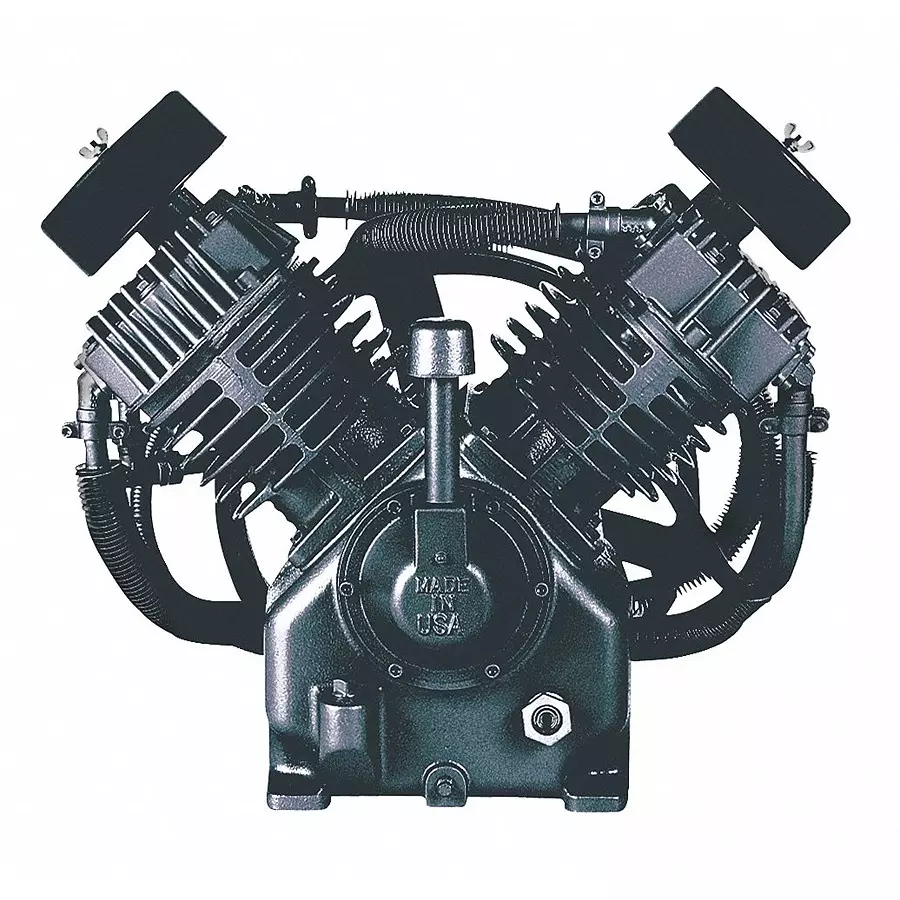

SPEEDAIRE Air Compressor Pump Splash Lubricated 2 Stage 15 HP, 51.0 cfm, 4B248
Buy SPEEDAIRE Air Compressor Pump Splash Lubricated 2 Stage 15 HP, 51.0 cfm, 4B248 Online in India on tecmet.in. All Genuine Products ✔ Lowest Prices ✔ Free Shipping ✔ EMI & COD
₹696,962.00
18
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Is Consumable |
N |
|---|---|
| Type of Product |
Air Compressor Pump |
| Part No |
4B248 |
| No. of Cylinders |
4 |
| Construction Type |
Cast Iron |
| Overall Depth |
49.53 cm |
| Bore Diameter |
2.5 inch 4.75 inch |
| Outlet size |
0.75 inch |
| Maximum output power |
15 HP |
| Country of Origin |
USA |
| Flywheel |
Yes |
| Maximum Operating Pressure |
175 psi |
| No. of Stages |
2 |
| Stroke Length |
3 inch |
| Valve Material |
Stainless Steel |
| UNSPSC Code |
40151501 |
| Rotation |
CCW |
| Lubrication Type |
Splash Lubricated |
| Free Air Flow Rate Maximum Pressure |
51.0 cfm @ 175 psi |
| Overall Height |
24.5 Inch |
| Wheel Diameter |
19-3/8 inch |
| Item Code |
4B248 |
| Overall Width |
72.00 cm |
| Oil Capacity |
1 gal |
| Pump Speed |
1,020 RPM |
| Outlet Connection Type |
NPT |
| Overall Height cm |
62.23 cm |
| Overall Height mm |
622.3 mm |
| Overall Width mm |
720.6 mm |
| Overall Depth inch |
19.5 inch |
| Bore Diameter mm |
63.5 mm |
| Wheel Diameter mm |
492.13 mm |
| Outlet Size mm |
19.05 mm |
