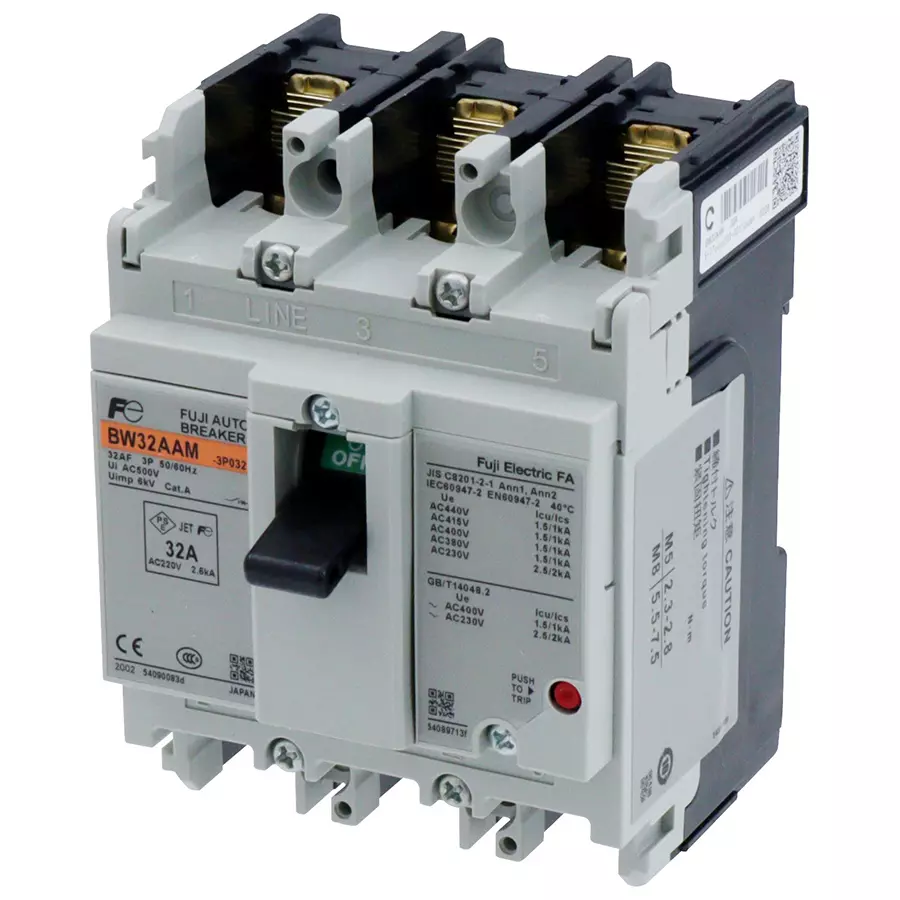

Fuji Electric BW Series General Circuit Breaker for Motor Protection, BW32AAM-3P032
Buy Fuji Electric BW Series General Circuit Breaker for Motor Protection, BW32AAM-3P032 Online in India on tecmet.in. All Genuine Products ✔ Lowest Prices ✔ Free Shipping ✔ EMI & COD
₹4,247.00
12
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Standard |
JIS C 8201-2-1 |
|---|---|
| Model No |
BW32AAM-3P032 |
| Type of Product |
General Circuit Breaker |
| Is Consumable |
N |
| Country of Origin |
Japan |
| Weight |
0.5 Kg |
| Outer Dimension d mm |
84 mm |
| Rated Capacity |
7.5 kW |
| Suitable For |
Motor Protection |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
32 AF |
| Included Components |
Body mounting screws (M4 x 55) x 2 |
| Rated Current |
32 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35106102 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V) 1.5/1 kA・(AC230V) 2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW32 type |
| No. of Pole |
3P per Elements |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
75 mm |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Weight g |
500 g |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
