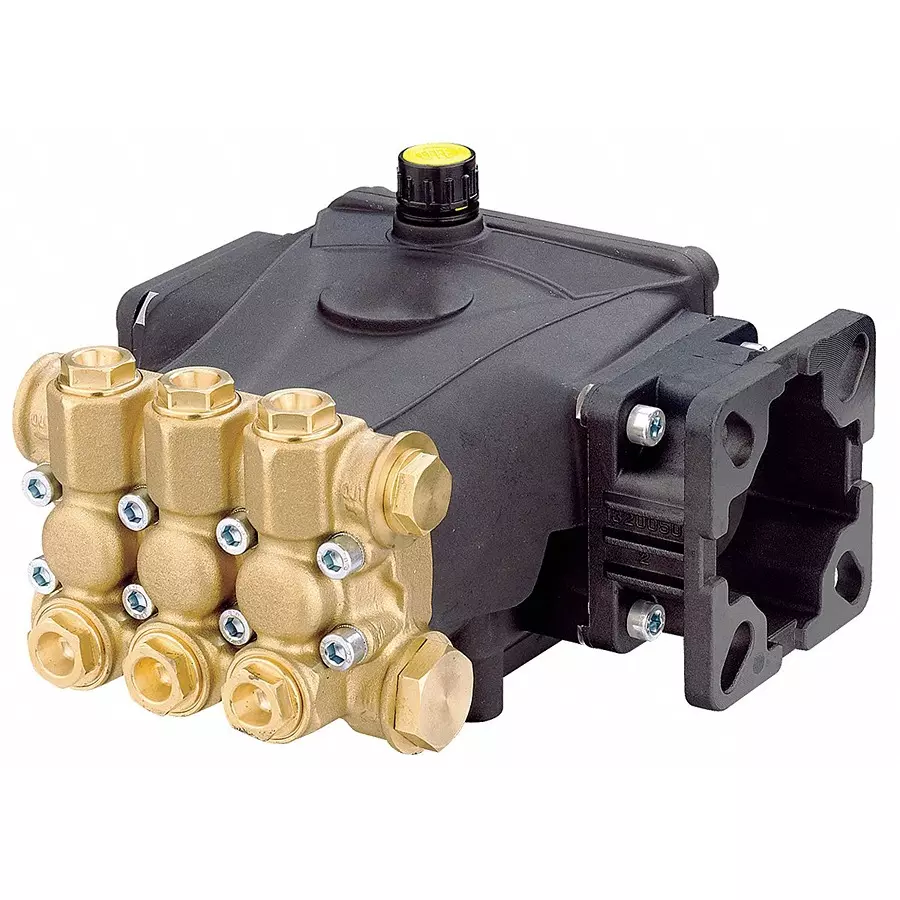

Dayton Hardened Steel BSP Pressure Plunger Pump 5 HP, 4WXV9
Buy Dayton Hardened Steel BSP Pressure Plunger Pump 5 HP, 4WXV9 Online in India on tecmet.in. All Genuine Products ✔ Lowest Prices ✔ Free Shipping ✔ EMI & COD
₹80,239.00
14
People watching this product now!
Payment Methods:
Description
Specification
Overview
| Is Consumable |
N |
|---|---|
| Type of Product |
Pressure Plunger Pump |
| Part No |
4WXV9 |
| UNSPSC Code |
40151527 |
| Material |
Hardened Steel |
| Country of Origin |
China |
| Item Code |
4WXV9 |
| Maximum Flow Rate |
2.5 gpm |
| Max. Discharge Pressure |
2,700 PSI |
| Discharge Port |
3/8 inch BSP |
| Lubrication |
Oil Bath |
| Wetted Material |
Brass |
| No. of Pistons |
3 |
| Flange Type |
Horizontal Gas Engine |
| Manifold Material |
Forged Brass |
| Design |
Triplex |
| Intake Connection Size |
1/2 inch |
| Maximum Operating Pressure |
2,700 PSI |
| Suction Ports |
1/2 inch BSP |
| Fluid Temperature |
140 °F |
| Connection Type |
BSP |
| Motor Speed |
3,400 RPM |
| Seal Material |
Buna-N |
| Overall Length |
7.2 inch |
| Plunger Material |
Ceramic |
| Bearing Type |
Ball Needle Roller |
| Crank Case Material |
Die Cast Aluminum |
| Shaft Type |
Hollow |
| Connection Size |
9.53 mm |
| Drive Type |
Direct-Mount |
| Seal Type |
Chevron Cotton Duct Lip |
| Head Material |
Forged Brass |
| Discharge Connection Type |
BSP |
| Horse Power |
5 HP |
| Overall Height |
4.9 Inch |
| Rod Material |
Aluminum |
| Series |
RCV |
| Overall Width |
7.5 inch |
| Shaft Outer Diameter |
3/4 inch |
| Shaft |
3/4 inch Hollow |
| Overall Length cm |
18.29 cm |
| Overall Height mm |
124.46 mm |
| Overall Width mm |
190.5 mm |
| Connection Size Inch |
3/8 inch |
