Showing 673–684 of 3225 results
Fuji Electric Auto Breaker for Motor Protection Wiring, BW63EAM-3P063
In stock
| Model No |
BW63EAM-3P063 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
63 AF |
| Type |
Motor Protection Wiring |
| Rated Current |
63 A |
| Monotaro ID |
50085436 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)1.5/1 kA ・(AC440/415/400/380V)2.5/2 kA ・(DC250V)5/3 kA |
| Connection Type |
Surface Type (screw terminal) |
| Model Name |
BW63EAM |
| No. of Pole |
3P3E |
| Suitable For |
Isolation |
| Protection |
Motor Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric Auto Breaker for Motor Protection Wiring, BW63SAM-3P063
In stock
| Model No |
BW63SAM-3P063 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
63 AF |
| Type |
Motor Protection Wiring |
| Rated Current |
63 A |
| Monotaro ID |
50085533 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)5/3 kA ・(AC440/415/400/380V)7.5/4 kA ・(AC230V)10/5 kA |
| Connection Type |
Surface Type (screw terminal) |
| Model Name |
BW63SAM |
| No. of Pole |
3P3E |
| Suitable For |
Isolation |
| Protection |
Motor Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW100AAG-3P100
In stock
| Model No |
BW100AAG-3P100 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
100 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Main Unit Mounting Screws (M4 x 55) x 2 |
| Rated Current |
100 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35106005 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC400/380V)1.5/1 kA ・(AC230V)5/3 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW100AAG |
| No. of Pole |
3P3E |
| Weight |
600 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
75 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW125JAG-3P100
In stock
| Model No |
BW125JAG-3P100 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
95 mm |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
125 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 70) x 2 |
| Rated Current |
100 A |
| Outer Dimension c mm |
68 mm |
| Trip button |
Included |
| Monotaro ID |
35106014 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)15/8 kA ・(AC440/415/400/380V)30/15 kA ・(AC/230V)50/25 kA ・(DC250V)15/8 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW125JAG |
| No. of Pole |
3P3E |
| Weight |
1.2 Kg |
| Outer Dimension b mm |
115 mm |
| Outer Dimension a mm |
90 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW32AAG-2P003
In stock
| Model No |
BW32AAG-2P003 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
32 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
3 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105594 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW32AAG |
| No. of Pole |
2P2E |
| Weight |
400 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
50 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |

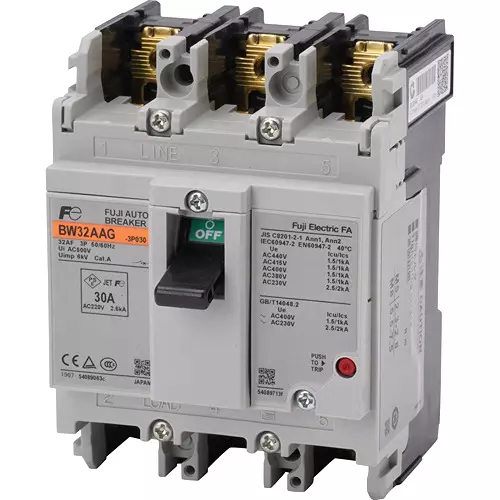

Fuji Electric BW Series Auto Breaker for General Wiring, BW32AAG-3P030
In stock
| Model No |
BW32AAG-3P030 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
32 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
30 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105716 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW32AAG |
| No. of Pole |
3P3E |
| Weight |
500 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
75 mm |
| Protection |
Line Protection |
| Country of Origin |
JAPAN |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW50AAG-2P050
In stock
| Model No |
BW50AAG-2P050 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
50 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
50 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105743 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW50AAG |
| No. of Pole |
2P2E |
| Weight |
400 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
50 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |

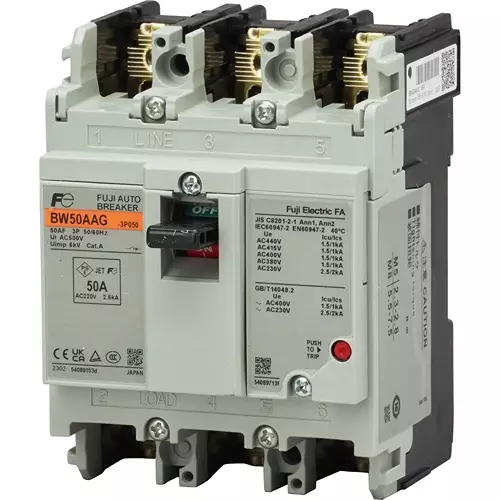

Fuji Electric BW Series Auto Breaker for General Wiring, BW50AAG-3P050
In stock
| Model No |
BW50AAG-3P050 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC500 V |
| Frame AF |
50 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
50 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105761 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW50AAG |
| No. of Pole |
3P3E |
| Weight |
400 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
50 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |

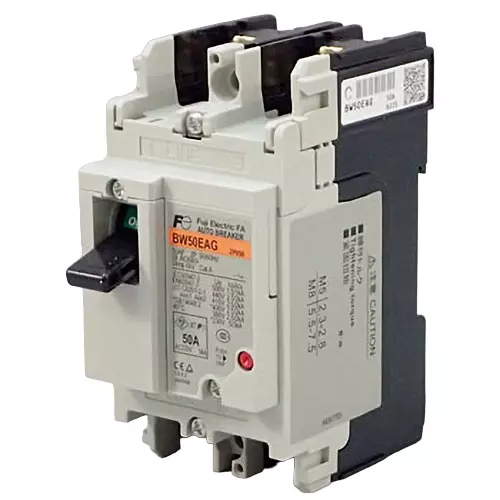

Fuji Electric BW Series Auto Breaker for General Wiring, BW50EAG-2P050
In stock
| Model No |
BW50EAG-2P050 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
50 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
50 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105847 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)1.5/1 kA ・(AC440/415/400/380V)2.5/2 kA ・(AC230V)5/3 kA ・(DC250V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW50EAG |
| No. of Pole |
2P2E |
| Weight |
400 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
50 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW50EAG-3P020
In stock
| Model No |
BW50EAG-3P020 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
50 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
20 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105883 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)1.5/1 kA ・(AC440/415/400/380V)2.5/2 kA ・(AC230V)5/3 kA ・(DC250V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW50EAG |
| No. of Pole |
3P3E |
| Weight |
500 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
75 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW63EAG-2P060
In stock
| Model No |
BW63EAG-2P060 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
63 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
60 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105935 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)1.5/1 kA ・(AC440/415/400/380V)2.5/2 kA ・(AC230V)5/3 kA ・(DC250V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW63EAG |
| No. of Pole |
2P2E |
| Weight |
400 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
50 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
Fuji Electric BW Series Auto Breaker for General Wiring, BW63EAG-3P060
In stock
| Model No |
BW63EAG-3P060 |
|---|---|
| Type of Product |
Automatic Circuit Breaker |
| Is Consumable |
N |
| Standard |
JIS C 8201-2-1 |
| Outer Dimension d mm |
84 mm |
| Rated Insulation Voltage |
AC690 V |
| Frame AF |
63 AF |
| Type |
Instant Fixed Type For General Wiring |
| Included Components |
Body Mounting Screws (M4 x 55) x 2 |
| Rated Current |
60 A |
| Outer Dimension c mm |
60 mm |
| Trip button |
Included |
| Monotaro ID |
35105953 |
| Rated Breaking Capacity |
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC500V)1.5/1 kA ・(AC440/415/400/380V)2.5/2 kA ・(AC230V)5/3 kA ・(DC250V)2.5/2 kA |
| Connection Type |
Surface Type (for crimping and bar terminals) |
| Model Name |
BW63EAG |
| No. of Pole |
3P3E |
| Weight |
600 g |
| Outer Dimension b mm |
100 mm |
| Outer Dimension a mm |
75 mm |
| Protection |
Line Protection |
| Country of Origin |
Japan |
| Name of Manufacturer/Packer/Importer |
Fuji Electric Co Ltd |
| Direct Import from Japan |
TRUE |
| Import Country |
Direct Import from Japan |
